Anchor bolts and connection bolts are two important types of components in steel structure systems and pre-engineered steel buildings. Each type of bolt plays a different role, from securing the foundation to connecting the steel frame components. Choosing the correct bolt ensures the construction achieves better stability, load capacity, and durability. In industrial projects, bolts are seen as the "invisible steel connection" that makes the entire structure strong and safe.
A bolt is a mechanical fastener, shaped like a cylindrical rod, with a threaded end used with a nut to join two or more components together. It is an essential material in the construction, mechanical, and steel structure industries. Bolts create a tight joint that can be easily disassembled while maintaining good load-bearing capacity. In pre-engineered steel buildings, bolts connect columns, beams, and gusset plates, ensuring the overall stability of the steel frame connection bolt.
A steel structure bolt usually consists of three main parts: the bolt head, the threaded body, and the nut. The head comes in various shapes like hexagonal, cylindrical, or square, making it easy to tighten. The threaded body is manufactured to standards, creating a secure connection with the nut. The bolt surface is often hot-dip galvanized or electroplated to increase corrosion resistance in outdoor environments, especially for steel structure projects.
Bolts are widely used in steel structures, prefabricated factories, bridges, and mechanical manufacturing. In steel buildings, bolts connect steel components to the foundation, beams, and columns. Additionally, the foundation anchor bolt handles tension, uplift, and vibration forces from the structure. Thanks to their strength and high load capacity, bolts are a critical factor in ensuring the safety and lifespan of the entire structure.
An anchor bolt is a specialized bolt used to fix the steel structure to the concrete foundation. Its structure includes a threaded part, a curved anchor part, and a tightening nut to increase adhesion and load capacity. Foundation anchor bolts are widely used in factory buildings, power poles, cranes, and pre-engineered buildings. With a special design, the anchor bolt helps the steel frame stand firm, resists shaking, and ensures absolute safety.

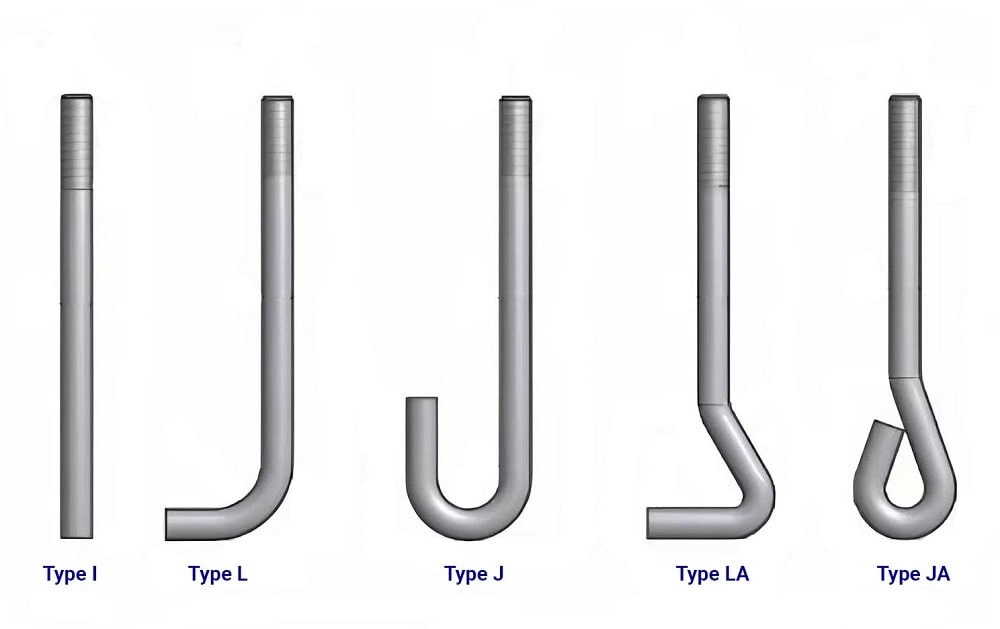

Depending on technical requirements and structure, anchor bolts are divided into different types. Common styles include I-type, L-type, J-type, LA-type, and JA-type anchor bolts. Each type has a unique anchor hook shape and load capacity. Anchor bolts are typically made from high-strength steel and galvanized to prevent rust in harsh environments. Choosing the correct foundation anchor bolt helps the construction achieve stability and reduces long-term maintenance costs.
The I-type anchor bolt, also known as a straight anchor bolt, has a straight body and two threaded ends for fixing with a nut or base plate. Unlike curved bolts like L or J, the I-type is secured in concrete by a base plate or welded anchor plate at the bottom end. This design allows the bolt to withstand high tensile forces and ensures accuracy during installation. The I-type anchor bolt is often used for machine foundations, large steel column bases, and industrial factories where high stability is required.
The L-type anchor bolt has a curved tail shaped like the letter L, which creates a tight bond with the concrete. This is the most common type in pre-engineered steel buildings and industrial steel structures. With a simple but highly effective structure, the L-type anchor bolt is easy to install and has good load-bearing capacity. It is typically used for column bases, factory frames, and fixed machine foundations.
The J-type anchor bolt has a curved hook shaped like the letter J, which increases its grip in the concrete block and effectively prevents slipping. This structure is especially suitable for structures subject to vibration, tension, or movement. The J-type anchor bolt is often used in machine foundations, cranes, and heavy steel frame connection bolts. With high durability and adhesion, the J-type ensures safety and stability for the steel structure system over a long period.
The LA-type anchor bolt is an improved version of the L-type, with an added base plate or retaining ring at the tail to increase load capacity. This type is often used in projects with heavy loads or positions subjected to strong twisting forces. Thanks to its optimal design, the LA-type anchor bolt helps reduce concrete cracking around the column base and increases the lifespan of the foundation system. It is an ideal choice for large-scale pre-engineered steel buildings or heavy industrial factories.
The JA-type anchor bolt has a structure similar to the J-type but with an added base plate or square anchor plate at the end. This structure helps distribute the force more evenly and prevents the bolt from rotating under heavy loads. The JA-type anchor bolt is often used in power poles, cranes, high-rise steel buildings, and machine foundations. With superior load capacity and high stability, the JA-type is considered the optimal choice for complex structural projects.

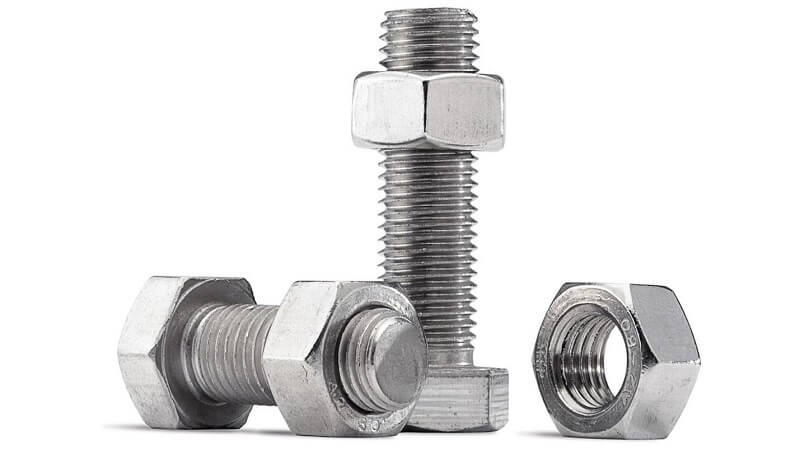

A connection bolt is a type of bolt used to connect steel components such as beams, columns, gusset plates, and trusses. The structure of a connection bolt includes a threaded cylindrical body, a nut, and a washer to evenly distribute the tightening force. The steel frame connection bolt ensures stability, load transfer, and continuity for the entire structure. In pre-engineered steel buildings, the connection bolt is seen as the "steel joint" that ensures structural accuracy and safety.
In pre-engineered buildings steel buildings, bolts are an indispensable connection between steel components and the foundation. The foundation anchor bolt secures the column bases to the concrete foundation, while the connection bolt is responsible for connecting the column, beam, and gusset plate frames. Thanks to an accurate and durable bolt system, the erection of steel buildings becomes fast, safe, and economical. It can be said that the bolt is the heart of the steel structure, helping the construction operate stably throughout its service life.
